30ft Portable Canteen/Drying Room – Large
AV CANTEEN & DRYING ROOM UNIT
Eco 30’ X 9’ A/V Canteen / Drying Room
This anti vandal unit is ideal for bigger sites. The unit is stackable with other 30' x 9' anti vandal models. Furniture is available upon request. Please ask our hire and sales team for more information.
Dimensions
9150 (L) x 2750 (W) (mm)
Gross Weight
3600 kg
Power Connection
230 V 32 AMP commando plug
Water Connection
15mm push fit polypipe
Grey Waste
40mm waste pipe
Anti vandal cabin key features
Drying Room Area
- 2 No 2kW wall mounted downflow heater

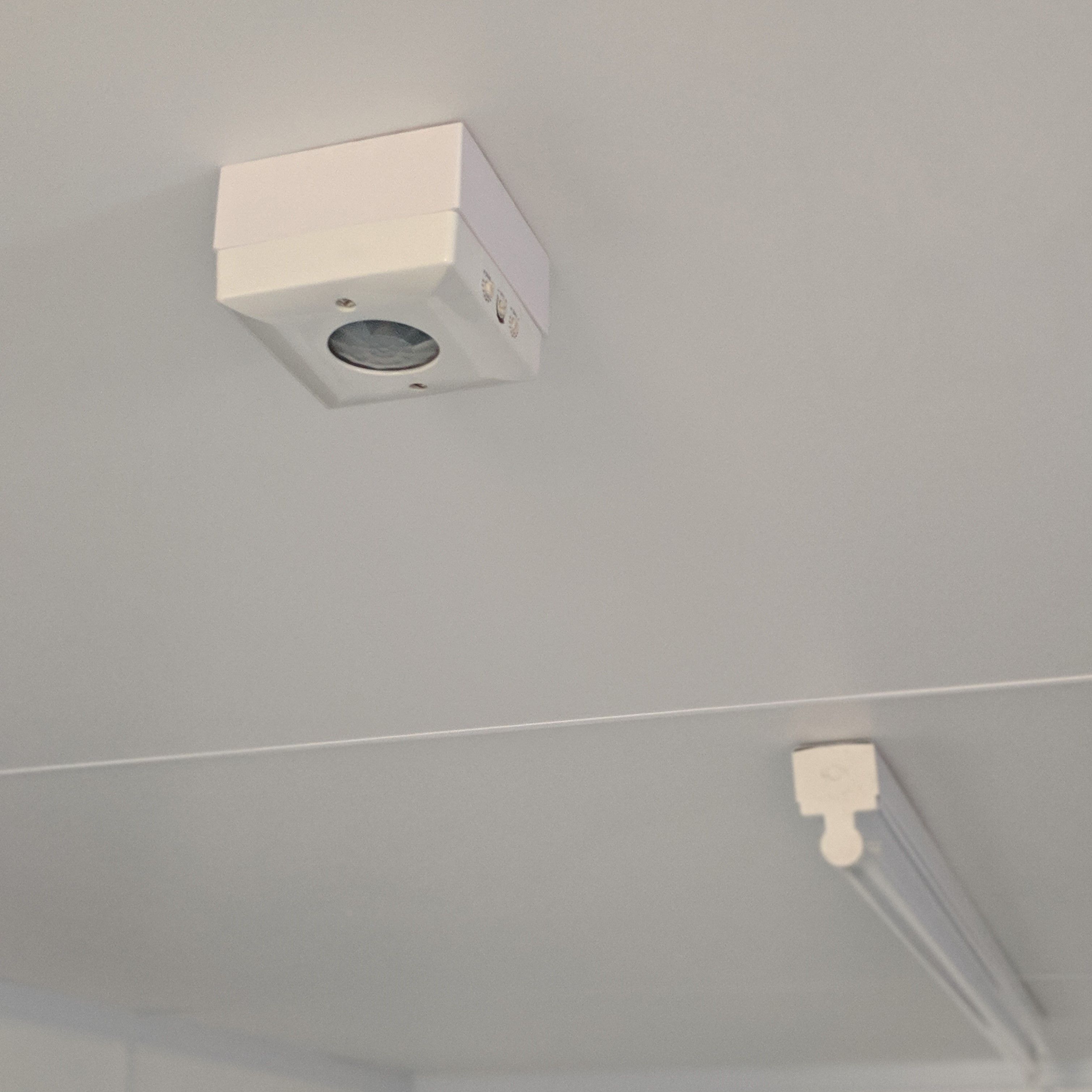

- PIR sensors
- Slatted bench seating to the perimeter of the unit with coat hooks fitted to a baton
Canteen Area

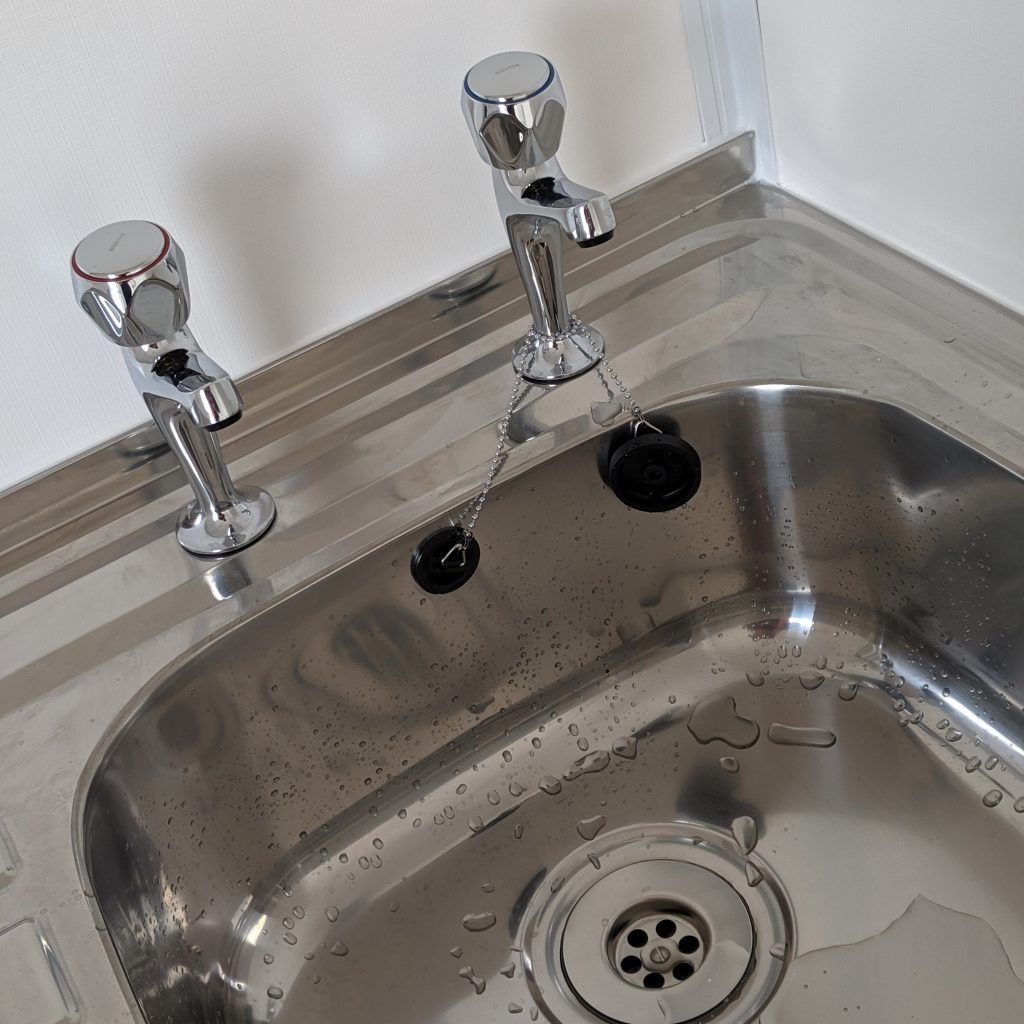

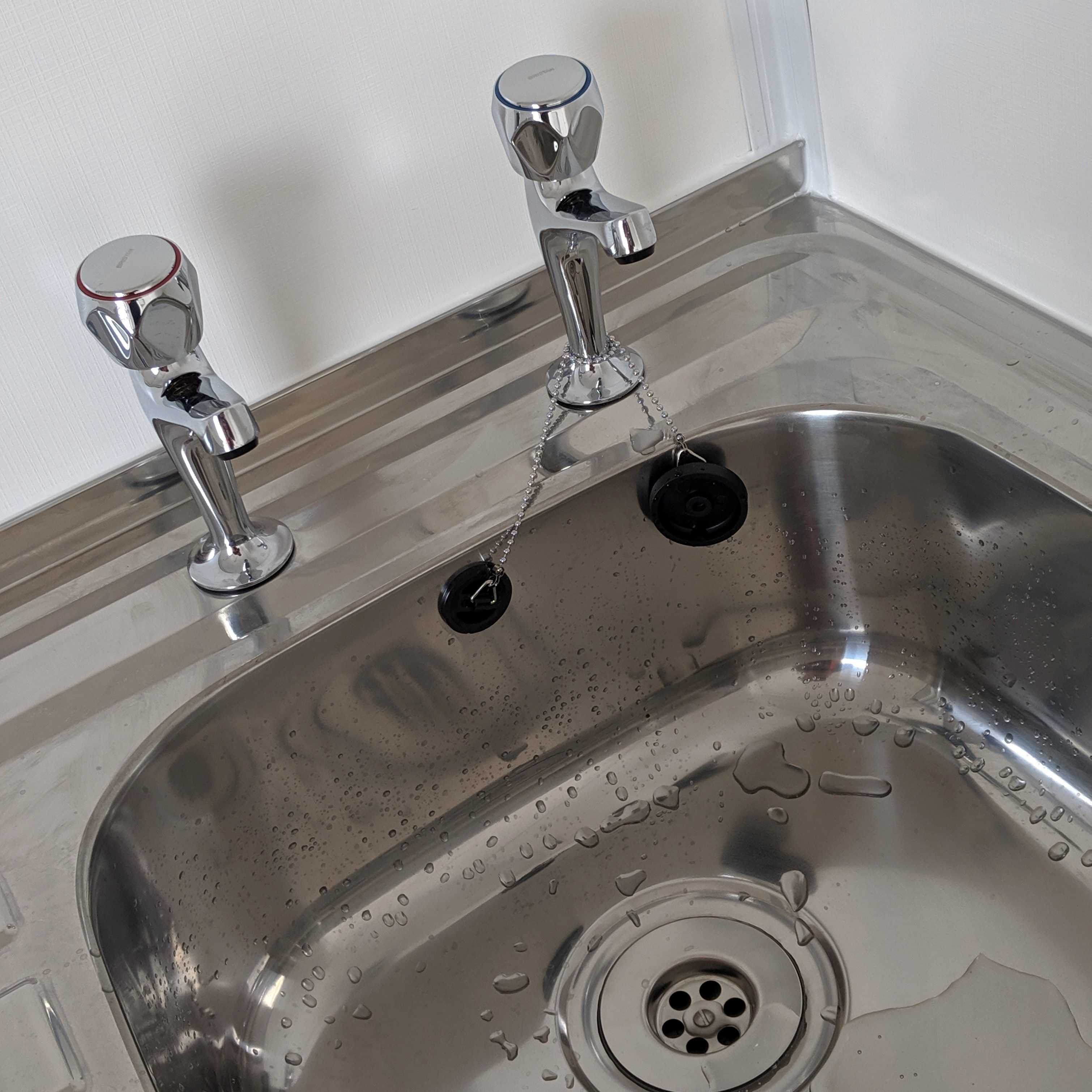

- Stainless steel sink, with double base unit and worktop
- 2 double sockets oulets, one abobe the worktop, one below
- 2 Additional double sockets at low level
- 1 No 2kW wall mounted convector heater
- PIR sensors
- 5L water heater
Flooring
- 1.5mm vinyl polyfloor 1.5XL graphite 9120
Internal Construction
- Mono ceiling board
- 3.6mm EGB10 wallboard

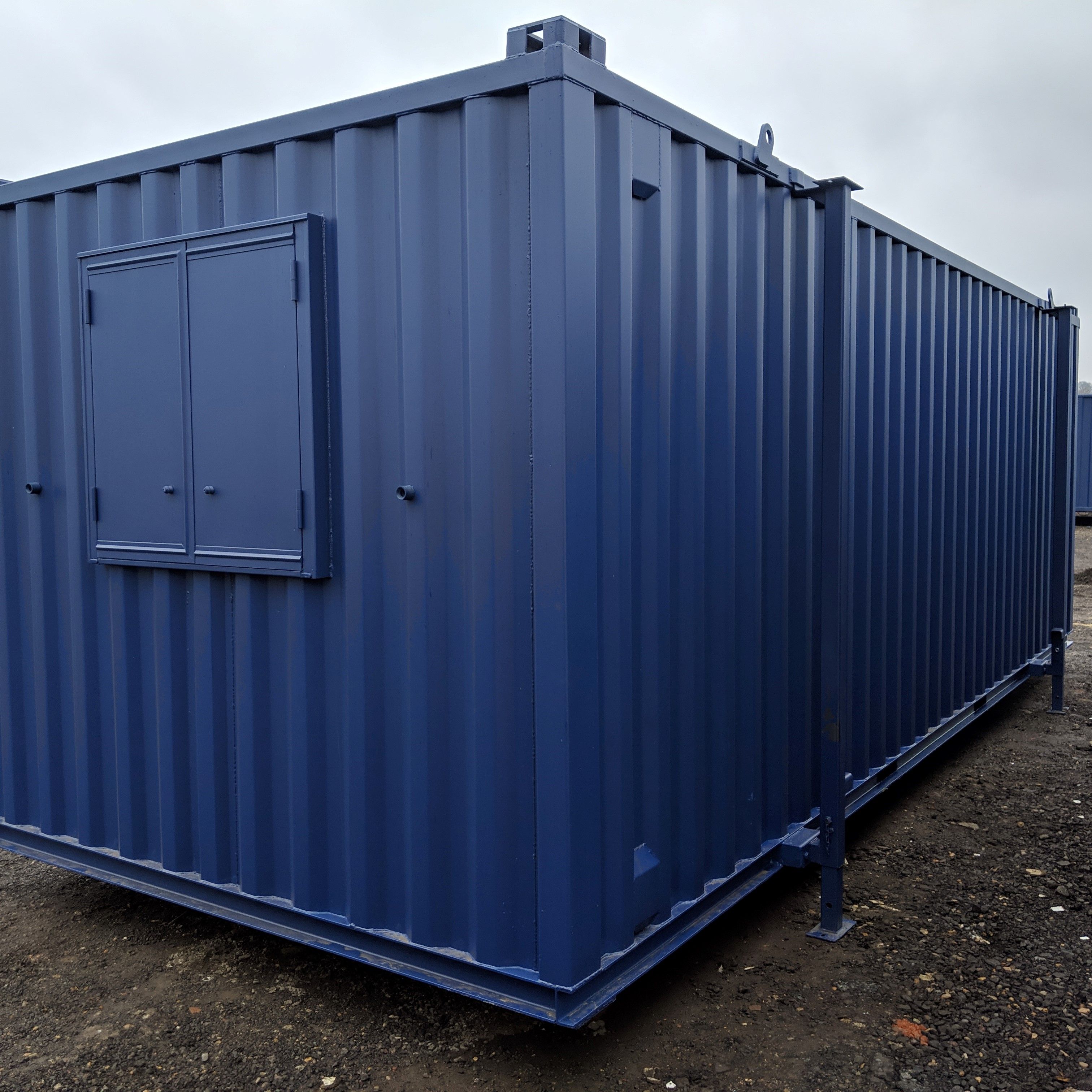

External Construction
- 1.6mm corrugated fully welded side pannels
- 1.6mm flat steel fully welded roof, & steel sub floor

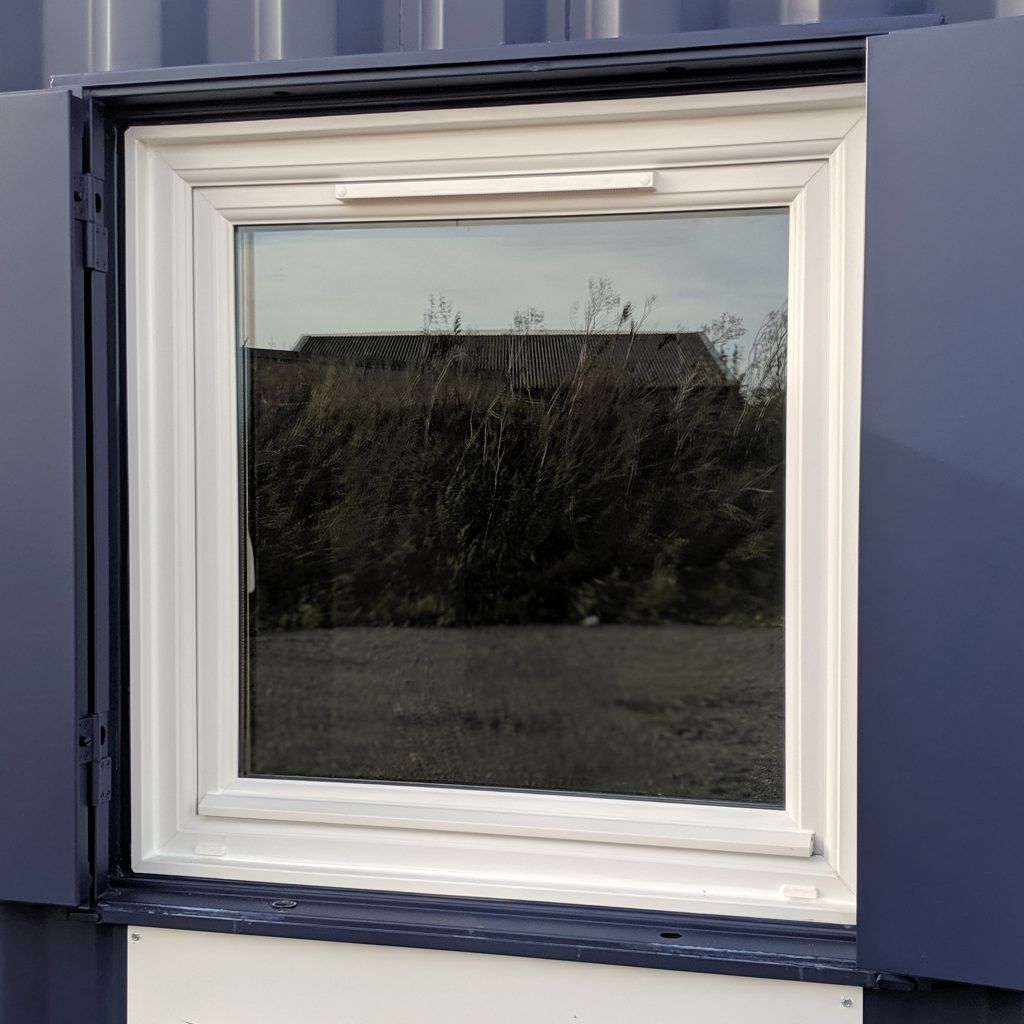

- UPVC tilt and turn double glazed windows

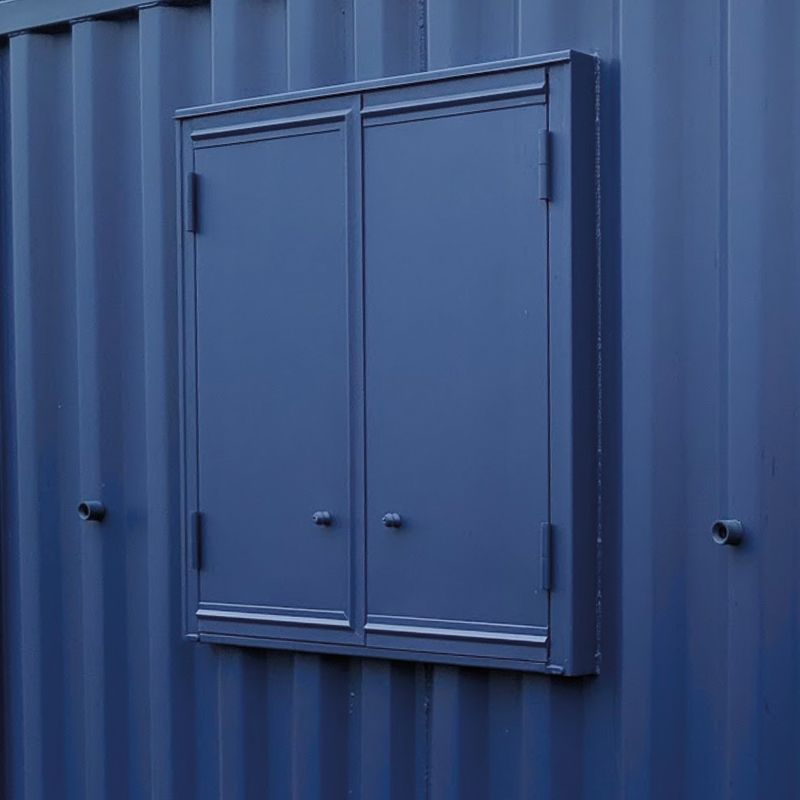

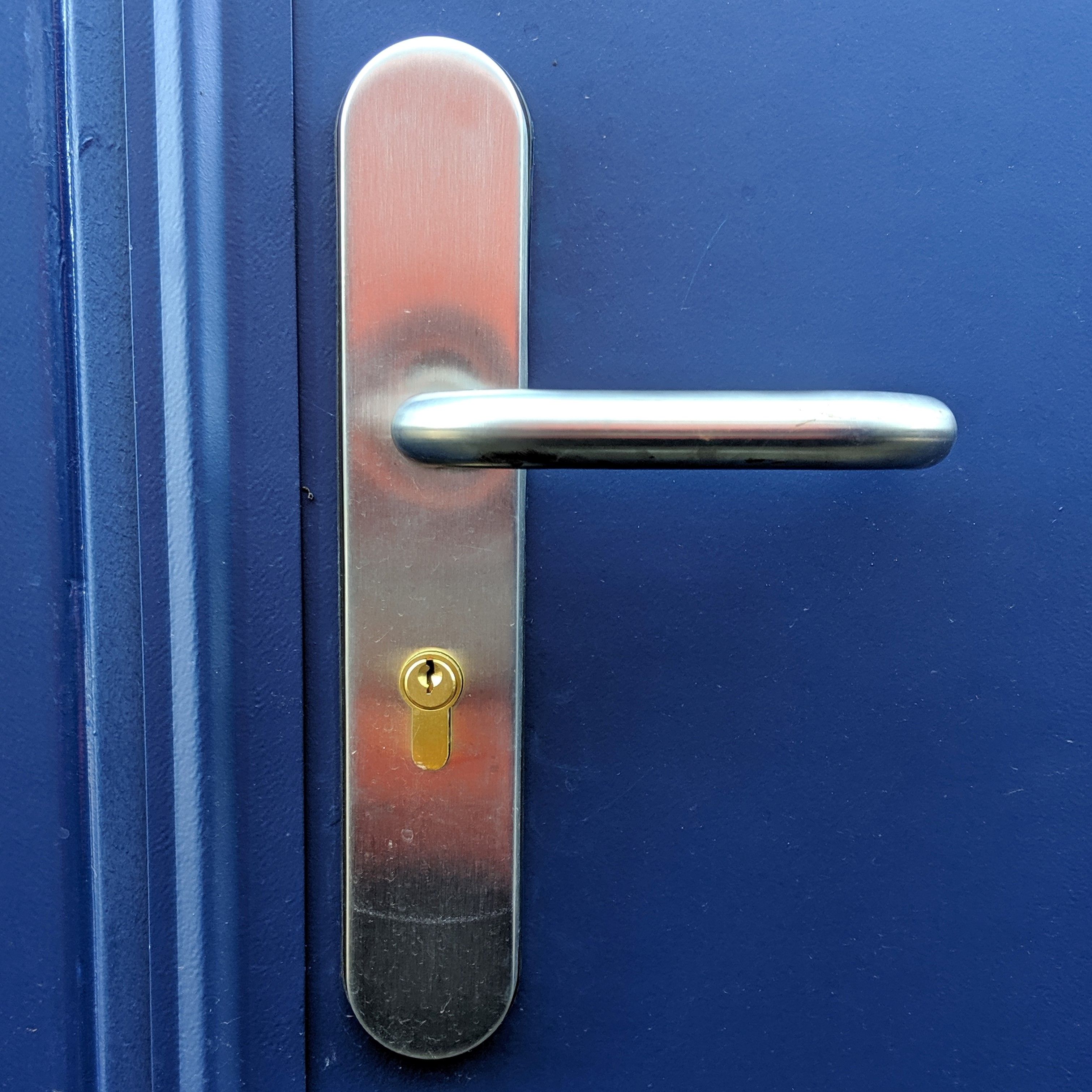

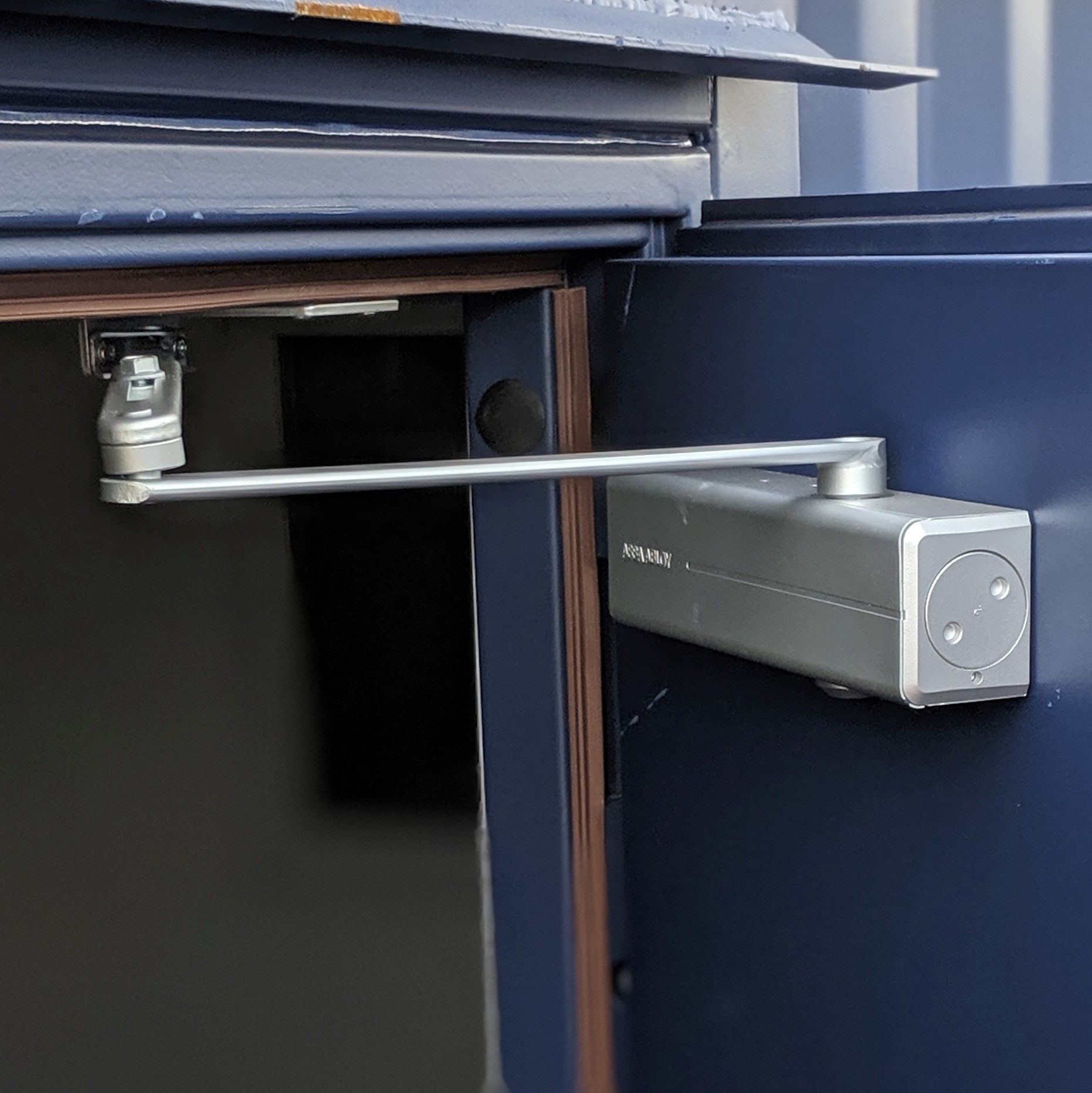

- Secure anti vandal door and shutter
- Steel underdrawn and fully insulated floor, walls, & ceiling
