3+1 WC
TOILET BLOCK
Eco 16’ x 9’ 3+1 WC
This anti vandal unit is ideal for sites with limited space. The 3+1 toilet block provides clean toilet facilities to be used by up to 75 people on site.
Dimensions
4876 (L) x 2750 (W) (mm)
Gross Weight
2600 kg
Power Connection
230 V 32 AMP commando plug
Water Connection
15mm push fit polypipe
Foul Waste Connection
110mm waste pipe
Anti vandal cabin key features

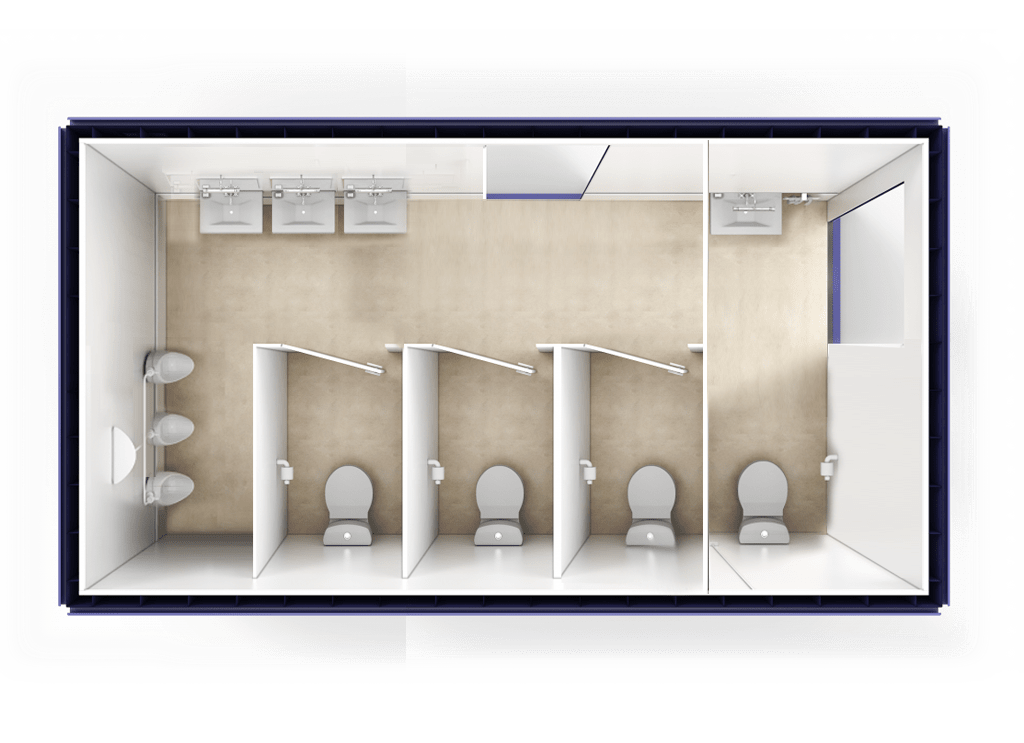

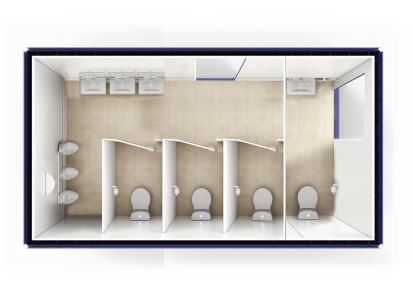

Male WC Area
- Private entrance via a secure door
- Three toilet cubicles with dual flush cisterns
- Three urianls with cistermiser, and Three ceramic wash hand basins
- PIR sensor for light control, and one frost watch heater
- The area has two high level aluminium windows
Female WC Area
- Private entrance via a secure door
- One toilet with dual flush cisterns, and one ceramic wash hand basins
- PIR sensor for light control, and one frost watch heater
- The area has two high level aluminium windows
- A 15L undersink water heater which feeds both the male and female WC is located in this area
Flooring
- 1.5mm vinyl polyfloor
- 1.5XL graphite 9120
Internal Construction
- Mono ceiling board
- 3.6mm EGB10 wallboard

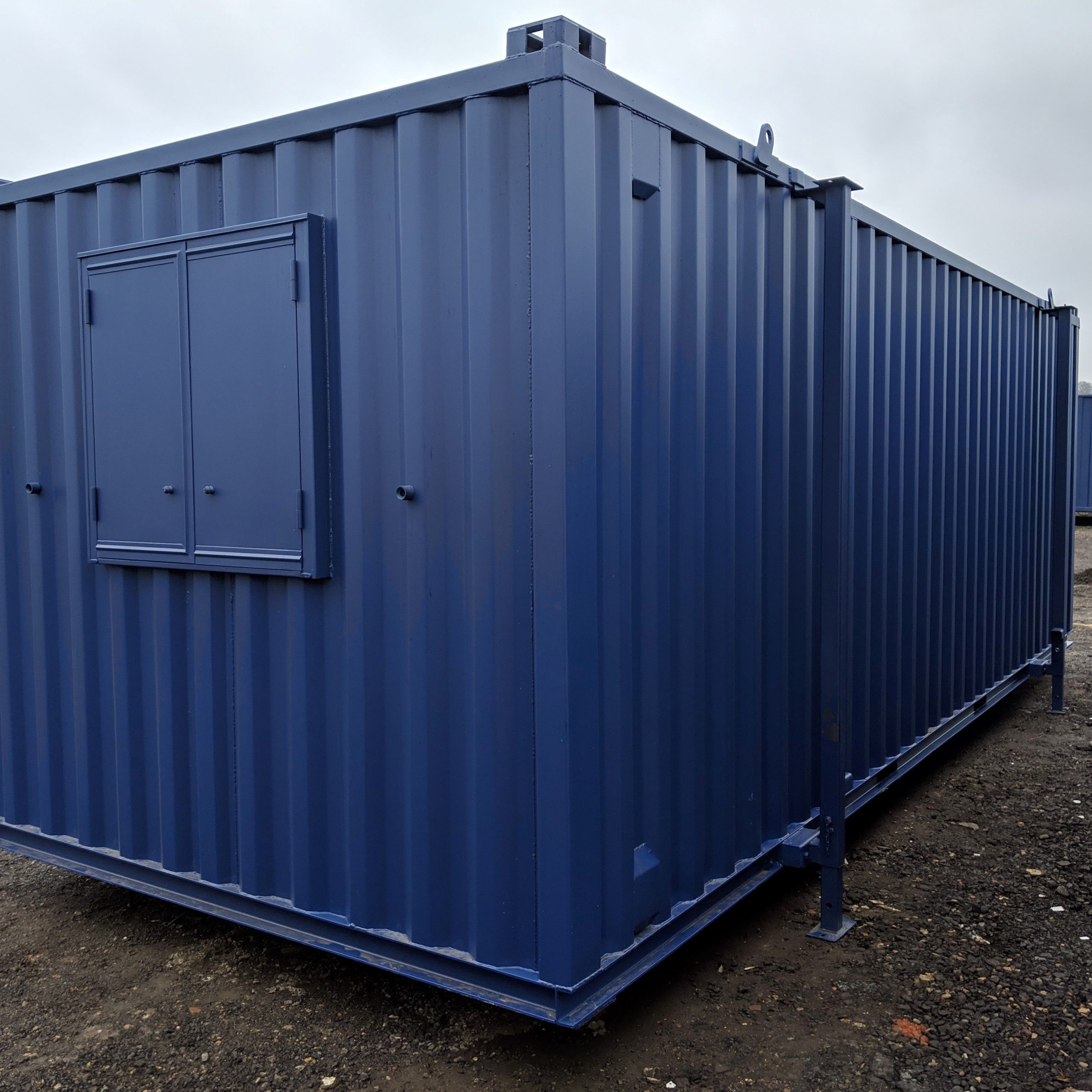

External Construction
- 1.6mm corrugated fully welded side pannels
- 1.6mm fl at steel fully welded roof, & steel sub floor
- UPVC tilt and turn double glazed windows

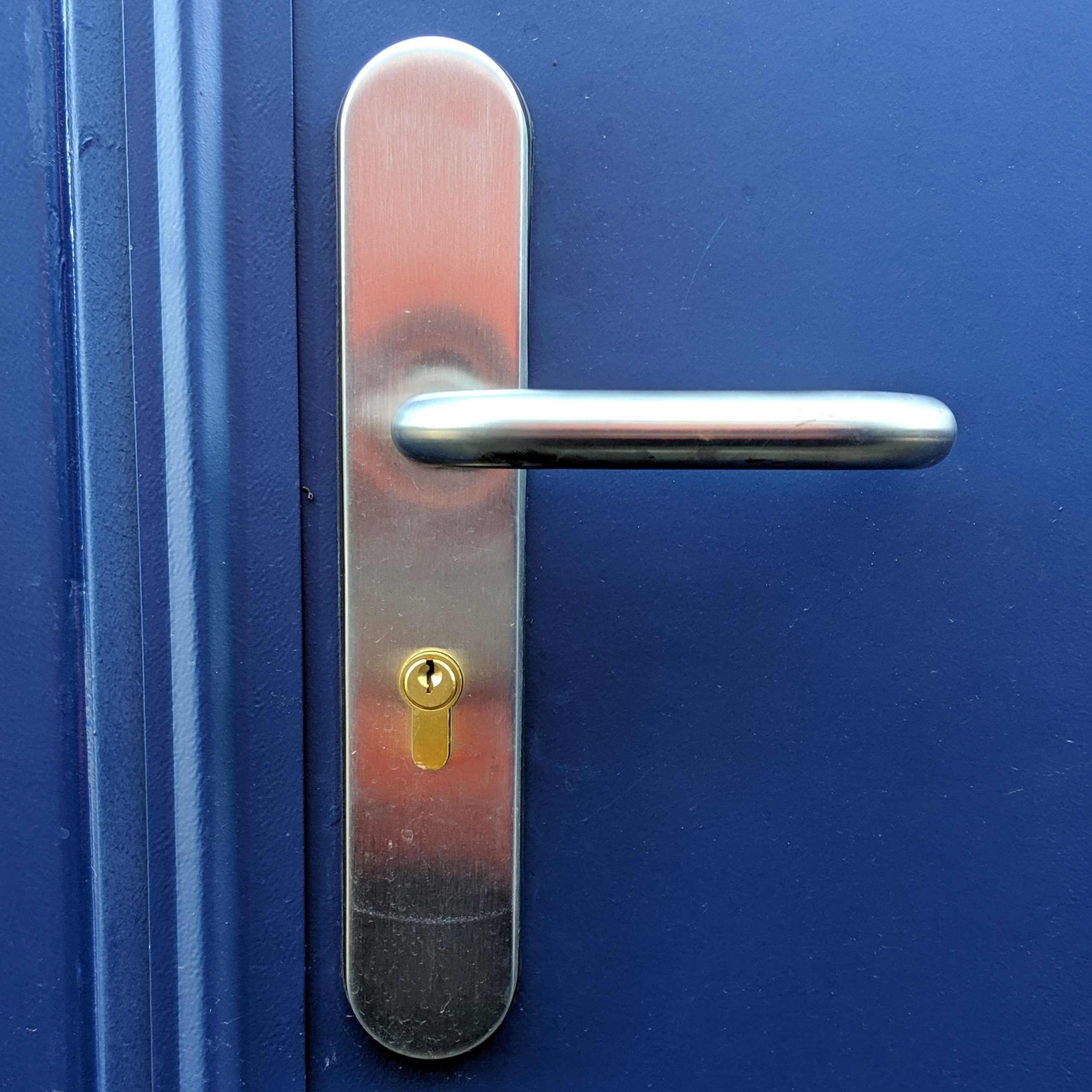

- Secure anti vandal door and shutter
- Steel underdrawn and fully insulated floor, walls, & ceiling
