GP500 Fusion
GP500 Fusion Mobile Welfare Unit
The GP500 Fusion is a versatile, energy-efficient welfare unit designed to support larger site teams with a comfortable, spacious and fully compliant environment. With accommodation for up to 10 people, it features an extended seating area and efficient heating and lighting systems that help reduce generator usage and lower day-to-day running costs.
Built to meet full HSE and CDM requirements, the GP500 Fusion provides a safe and comfortable space for contractors across all types of sites.

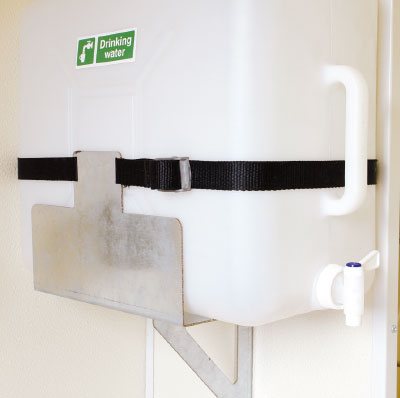

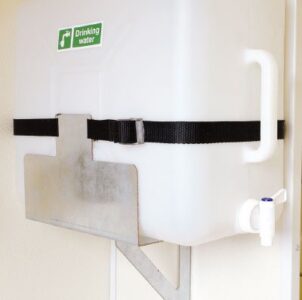

Its well-organised layout includes essential welfare provisions such as washing facilities, sanitary conveniences, access to drinking water, and areas for resting, eating, drying, and changing clothing. The result is a flexible and cost-effective welfare solution that delivers both comfort and compliance in one unit.
The GP500 Fusion comes equipped with a wide range of practical, energy-efficient features designed to support larger site teams with comfort, compliance and dependable daily performance. Built to be spacious, towable, and cost-effective, it delivers essential welfare facilities in a single unit while maintaining full HSE and CDM compliance.
Rapid Setup

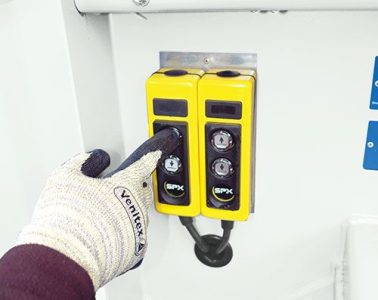

Engineered for fast, efficient deployment on any site, the GP500 Fusion’s twin-axle trailer design and unique Groundhog hydraulic system allow the unit to be lowered to ground level effortlessly, enabling a single operator to position, level, and secure it in minutes. With a hydraulically damped tow coupling, and a protective steel nose cone cover, the GP500 Fusion provides smooth transport and safe installation wherever it is needed.
Fully Equipped Welfare Facilities

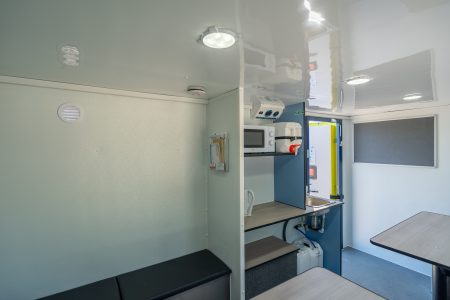

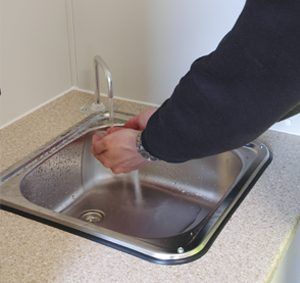

Built to support teams throughout the working day, the GP500 Fusion offers all essential amenities in a compact yet comfortable layout. The canteen area includes bench seating for up to 10 people, alongside a hard-wired microwave and kettle. A large stainless-steel sink with warm water, fresh wastewater containers (20L each), and paper towels, soap, and cup dispensers.
In the dedicated toilet area, a plastic recirculating toilet with a 280L tank and integrated ventilation pipe is paired with a forearm wash basin and warm water tap, delivering reliable hygiene facilities that meet site welfare regulations.
Reliable Power & Electrical Systems
The GP500 Fusion delivers dependable performance through a robust and efficient electrical setup. PIR-activated 12V LED lighting is installed throughout the unit. Power is supported by a 130Ah battery with a guard, a voltmeter, and a consumer board with RCD/MCBs. Plus 2-amp and USB charging sockets for day-to-day use.
A 6kVA diesel generator with exhaust venting, start panel, hour-run meter, and a separate fuel-level gauge, providing consistent onsite power. Combined with the Fuel Active system and a 58L fuel tank offering approximately 25 hours of runtime, the GP500 Fusion is built for long operational periods with minimal downtime.
Safe and Secure Design
Safety and security are prioritised throughout the GP500 Fusion’s construction. The unit is fitted with a carbon monoxide monitor, smoke alarm, and high-level ventilation. Steel personnel doors, shuttered aluminium windows, and a steel nose cone all come equipped with the unit for added protection.
Internally, the structure is lined and insulated using GRP panels with block insulation inserts, ensuring durability and temperature control. Externally, fully hot-dipped galvanised steel chassis and profiled steel panels form a rugged outer shell built to withstand challenging site environments.
Eco-Focused Fusion Technology
The GP500 Fusion is engineered with sustainability in mind, delivering lower fuel consumption and improved thermal performance across all working conditions. Its insulated flooring and enhanced internal insulation reduce heat loss, helping maintain a comfortable temperature with far less energy required. The efficient air-blown heating system provides rapid warmth while optimising generator load, ensuring heat is delivered precisely where it is needed without unnecessary power draw.

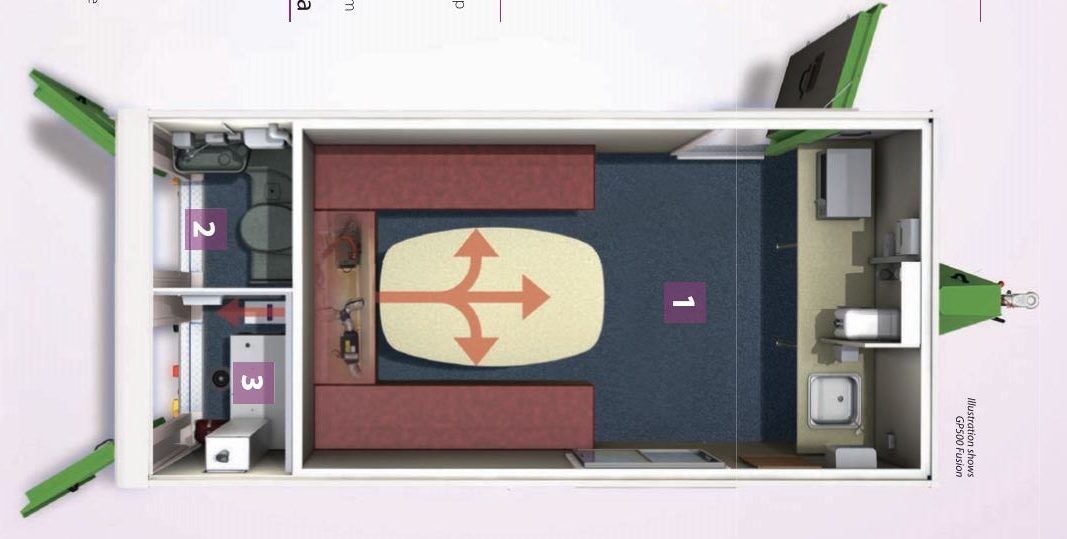

Practical Internal Layout
Offers clearly separated areas, including a canteen area, toilet, drying/generator room, each with PIR lighting, and ventilation. Coat hooks in the drying room and efficient layout planning ensure the unit operates smoothly during everyday use, supporting people with reliable workspace organisation.
