GPO500 Fusion

10 person, towable welfare unit
Overview Specification Key Features Images

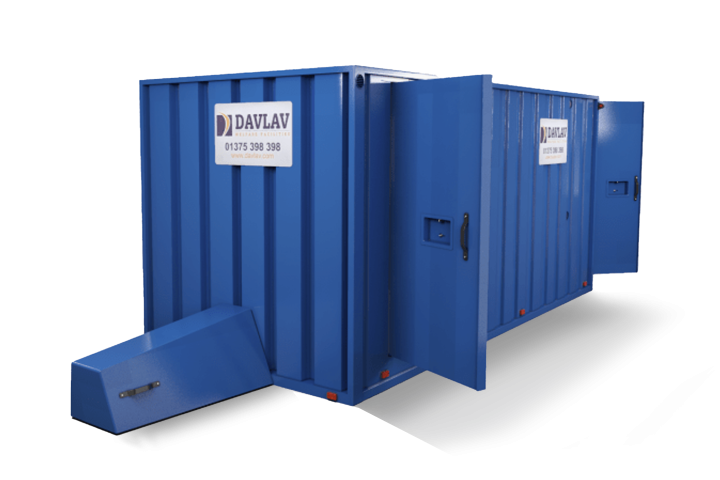

GPO500 Fusion Mobile Welfare Unit

The Davlav GPO500 Fusion mobile welfare unit features a separate office space. It can comfortably accommodate 8 people in the canteen area and a further 2 in the office feature. This versatile, towable HSE approved welfare unit is manufactured to use less generator energy, therefore cutting running costs

  • Lightweight and anti vandal
  • Reductions in fuel usage, carbon emissions and service schedules
  • Separate office area
Specification
Dimensions 5000 (L) x 2300 (W) x 2800 (H) (mm)
Dimensions including towbar 6320 (L) x 2300 (W) x 2800 (H) (mm)
Gross Weight 2565kg
Generator 6KVA
Fuel Tank 58 Litre
Key Features

Key features of our GPO500 Fusion in detail

Welfare Area

  • Table and cushioned bench seating bench seating with back rests for up to 10 people
  • Table and cushioned bench seating bench seating with back rests for up to 10 people Air blown heating system
  • Microwave and kettle – both hard-wired
  • Fresh & waste water containers (20 Ltr cap each)
  • Large stainless steel sink c/w warm water tap
  • 12V LED Lighting with PIR
  • Inverter powered single socket
  • Consumer board c/w RCD & MCB’s
  • Generator start panel c/w hour run meter
  • Heater control
  • Paper towels, liquid soap and cup dispenser
  • High level vent
  • Fresh drinking water container (20 Ltr)
  • Storage area under counter
  • Volt meter
  • 130Amp battery/ battery guard
  • 12V socket and USB socket
  • Carbon monoxide monitor

Toilet Area

  • Plastic recirculating toilet c/w ventilation pipe
  • Warm water supplied by on-board heating system
  • Forearm pedestal wash basin c/w warm water tap
  • Toilet tank size: 280L
  • Liquid soap & paper towel dispenser
  • Toilet roll holder
  • 12V LED lighting with PIR
  • Single coat hook

Warm Room / Generator Area

  • 12V LED lighting with PIR
  • Air blown heating system
  • Coat hooks
  • Ventilation panel
  • 6kVA diesel generator with exhaust venting
  • Access to fuel tank with separate fuel level gauge (58 Ltr cap)
  • Fuel Active system
  • Generator start battery
  • Fuel tank runtime = approx. 25 hours

Office Area

  • Air blown heating system
  • 12V LED lighting with PIR
  • Inverter powered double socket
  • 230V 6Amp d­ouble socket
  • Desktop
  • Document holder
  • Notice and wipe clean board
  • 2 Coat hooks
  • Smoke alarm
  • Side window c/w steel security shutters

Flooring

  • Recycled Non-Slip Flooring

Internal Construction

  • Lined and Insulated in GRP, panels with block insulation inserts

External Construction

  • Steel profiled panels to side walls and roof.
  • Aluminium sliding Window with steel shutter
  • Steel personnel doors to four separate areas
  • (Toilet, Warm Room/Generator, Canteen and Office)
  • Twin axle with unique Groundhog hydraulic system to enable the unit to be lowered to Ground level with hand held control
  • Hydraulically damped overrun Tow coupling with 40mm
  • Eye 50mm ball hitch and jockey wheel (50mm ball hitch optional)

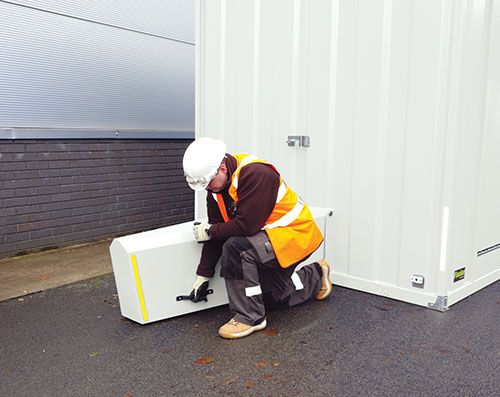

  • Steel nose cone shroud c/w lock to secure whilst lowered on site
  • Threaded bushed set in base rail to enable lifting rings to be positioned for low level lifting
  • Fully hot-dipped galvanised chassis
Images

For full details download product spec sheet

Download Spec Sheet
