GPO660 Fusion
Ground lowering, anti-vandal, mobile, site accommodation

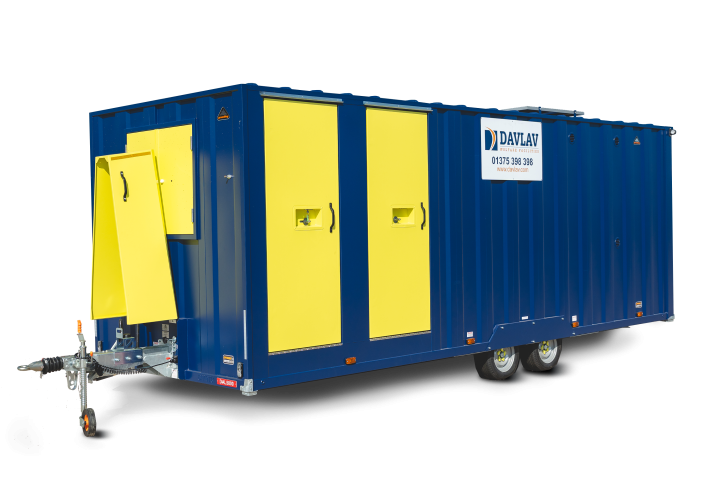

GPO660 Fusion Pulse Mobile Welfare Unit
Powered by solar technology with generator backup, this unit ensures optimum performance is maintained when in use and unmanned, giving owners and end users savings by way of reduced fuel usage, reduction in generator servicing, longer generator life, fewer breakdowns and reduced noise pollution – providing all you on-site needs in one reliable and cost effective package, ideal for rental companies and contractors.
- Lightweight and anti vandal
- Reductions in fuel usage
- Comfortably sits up to 10 people
Dimensions
6600 (L) x 2300 (W) x 2500 (H) (mm)
Dimensions including towbar
7920 (L) x 2300 (W) x 2900 (H) (mm)
Gross Weight
3500kg
Generator
6KVA
Fuel Tank
58 Litres
Key features of our GPO660 Fusion Pulse in detail
Welfare Area
- Table and bench seating for up to 10 people
- Air blown heating system
- Microwave and kettle – both hard-wired
- Fresh & waste water containers (20 Ltr cap each)
- Large stainless steel sink c/w warm water tap
- 12V LED lighting with PIR
- Single 2amp socket
- 12V socket and USB
- Consumer board c/w RCD & MCB’s
- Generator start panel c/w hour run meter
- Paper towels, liquid soap and cup dispenser
- Carbon monoxide monitor and smoke alarm
- High level vent
- Fresh drinking water container (20 Ltr)
- Volt meter
- 130Amp battery/ battery guard
Toilet Area
- Plastic recirculating toilet c/w ventilation pipe
- Forearm pedestal wash basin c/w warm water tap
- Toilet tank size: 280L
- Liquid soap & paper towel dispenser
- Toilet roll holder
- 12V LED lighting with PIR
- Warm water supplied by on-board heating system
Warm Room / Generator Area
- 12V LED lighting with PIR
- Air blown heating system
- Coat hooks
- Ventilation panel
- Generator start battery
- 6kVA diesel generator with exhaust venting
- Access to fuel tank with separate fuel level gauge (58 Ltr capacity)
- Fuel Active system
- Fuel tank runtime = approx. 25 hours
Internal Construction
- Lined and Insulated in GRP, panels with block insulation inserts
External Construction
- Steel profiled panels to side walls and roof
- Aluminium sliding Window with steel shutter
- Steel personnel doors to three separate areas (Toilet, Warm Room/Generator and Canteen)
- Twin axle with unique Groundhog hydraulic system to enable the unit to be lowered to Ground
- Level with hand held control
- Hydraulically damped overrun Tow coupling with 40mm
- Eye 50mm ball hitch and jockey wheel (50mm ball hitch optional)
- Steel nose cone shroud c/w lock to secure whilst lowered on site
- Threaded bushed set in base rail to enable lifting rings to be positioned for low level lifting
- Fully hot-dipped galvanised chassis
Road Lighting
- 12 Volt L.E.D detachable lighting board c/w mounting bracket and full L.E.D. road lighting which includes front and high level markers.
