SWO7600 Standard
SWO7600 Static Welfare Unit

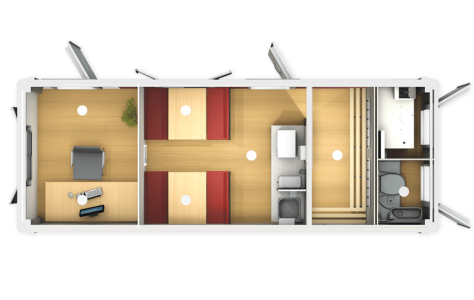

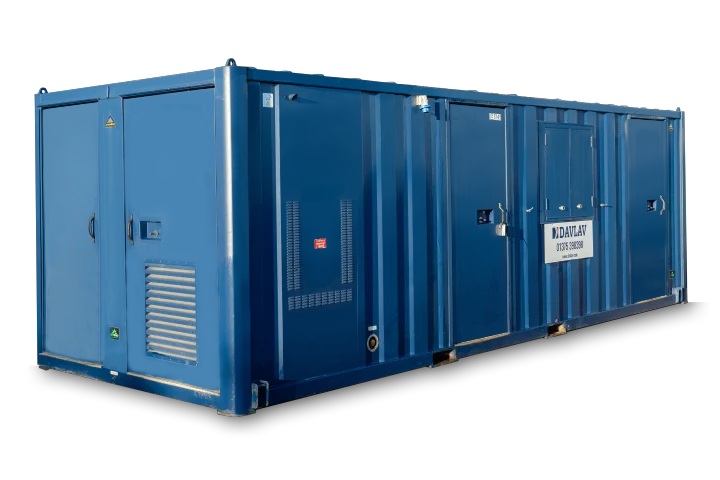

The SWO7600 Standard static welfare unit provides comprehensive facilities for construction sites requiring fixed-location welfare provision. Accommodating up to 8 people comfortably, this four-room unit includes separate canteen, drying area, toilet facilities, and dedicated office space.
Ideal for long-term construction projects, infrastructure works, and sites where welfare facilities remain in one location throughout the project duration. The static design eliminates the need for towability, maximising internal space and structural robustness for extended deployment.
Equipped with a 6KVA generator and 200-litre fuel tank providing approximately 105 hours runtime between refills. This extended capacity reduces servicing frequency and ensures uninterrupted operation. The Fuel Active system optimises generator efficiency, minimising fuel consumption and emissions.
All facilities feature warm water supplied by on-board heating systems, microwave and kettle for meal preparation, and comprehensive LED lighting with PIR sensors for energy efficiency. HSE compliant with separate welfare, toilet, drying, and office areas meeting CDM 2015 requirements.
Key features of the Davlav SWO7600 static welfare unit
Welfare Area
- Pleasant and light rest area
- Table and bench seating for up to 8 people
- Warm water supplied by on-board heating system
- Large stainless steel sink c/w warm water tap
- Microwave and kettle – both hard-wired
- Fresh & waste water containers (20 Ltr cap each)
- 12V LED lighting with PIR
- 1 x single invertor powered socket
- 12V socket and USB (optional)
- Consumer board c/w RCD & MCB’s
- Generator control panel with hour run meter
- Paper towels, liquid soap and cup dispenser
- Carbon monoxide monitor and smoke alarm
- High level vent
- 1000mm base unit c/w 10L water heating system
Drying Area
- 12V LED lighting with PIR
- Coat hooks
- Bench seating
- High level window
Toilet Area
- Plastic recirculating toilet c/w ventilation pipe
- Forearm pedestal wash basin c/w warm water tap
- Toilet tank size: 280L
- Warm water supplied by on-board heating system
- Toilet roll holder
- 12V LED lighting with PIR
- Ventilation panel
- Liquid soap and paper towel dispenser
Warm Room/ Generator Area
- 6kVA super silent diesel generator
- 12V LED lighting with PIR
- 200 litre diesel tank with filler neck and level gauge with Fuel Active system
- Fuel tank runtime = approx. 105 hours
- 130Amp hour battery
- Generator start battery
- 12V 30Amp battery charger
- Battery guard with fuse panel
Internal Construction
- Lined and Insulated in GRP, panels with block insulation inserts
External Construction
- Steel profiled panels to side walls and roof.
- Aluminium sliding Window with steel shutter
- Steel personnel doors to four separate areas
- (Toilet, Warm Room/Generator, Canteen and Office)
- Removable low level lifting eyes
- Fixed low level lifting & fork pockets
