SW6100 Fusion

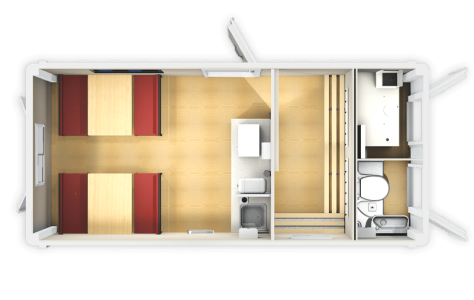

Well equipped seating area for up to 8 people

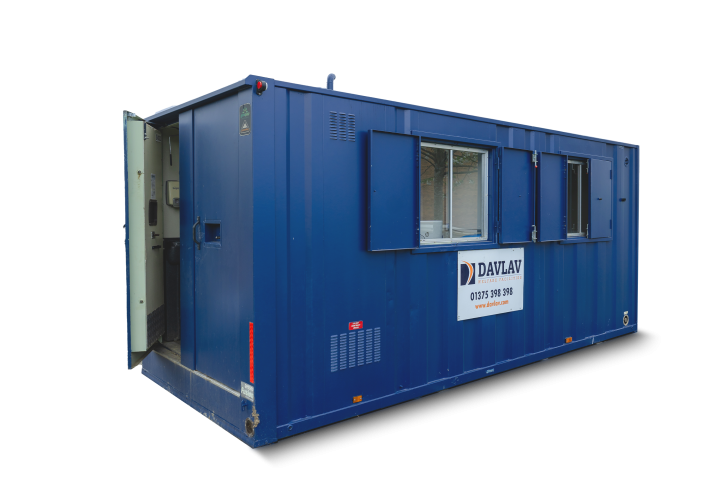

SW6100 Fusion Static Welfare Unit

The Davlav SW6100F fusion static welfare unit benefits from well equipped seating area for up to 8 people, separate drying area and comfortable and well ventilated toilet and drying room.

  • Pleasant and comfortable
  • Separate office space
  • Suitable for long term projects as cost effective
Dimensions 6100 mm (L) x 2755 mm (W) x 2800 mm (H)
Gross Weight 4500kg
Generator 6KVA
Fuel Tank 250 Litres
Key Features

Key features of the Davlav SW6100F Fusion static welfare unit

Welfare Area

  • Pleasant and light rest area
  • Table and bench seating for up to 8 people
  • Warm water supplied by on-board heating system
  • Large stainless steel sink c/w warm water tap
  • Microwave and kettle – both hard-wired
  • Fresh & waste water containers (20 Ltr cap each)
  • 1 x 230V double socket
  • Consumer board c/w RCD & MCB’s
  • Hour run meter on generator
  • Paper towel dispenser
  • Liquid soap dispenser
  • Carbon monoxide monitor and smoke alarm
  • High level vents
  • 1000mm base unit c/w 10L water heating system
  • LED lighting
  • 6x4 felt noticed board
  • Heating supplied by air blown Webasto heating system

Drying Area

  • Heating supplied by air blown Webasto heating system
  • High level window
  • Coat hooks
  • LED lighting
  • Generator service hatch
  • Bench seating

Toilet Area

  • Plastic recirculating toilet c/w ventilation pipe
  • Forearm pedestal wash basin c/w warm water tap
  • Toilet tank size: 280L
  • Warm water supplied by on-board heating system
  • Toilet roll holder
  • LED lighting
  • Liquid soap & paper towel dispenser

Warm Room / Generator Area

  • 6kVA super silent diesel generator with exhaust outlet and ventilation
  • 230v bulkhead light
  • 250 litre diesel tank with filler neck and level gauge
  • 3mm thick O/P (over-plain) diamond durbar plate flooring
  • Generator hour run meter
  • Generator start battery
  • Fuel tank runtime = approx. 120 hours

Internal Construction

  • Lined and Insulated in GRP, panels with block insulation inserts

External Construction

  • Steel profiled panels to side walls and roof

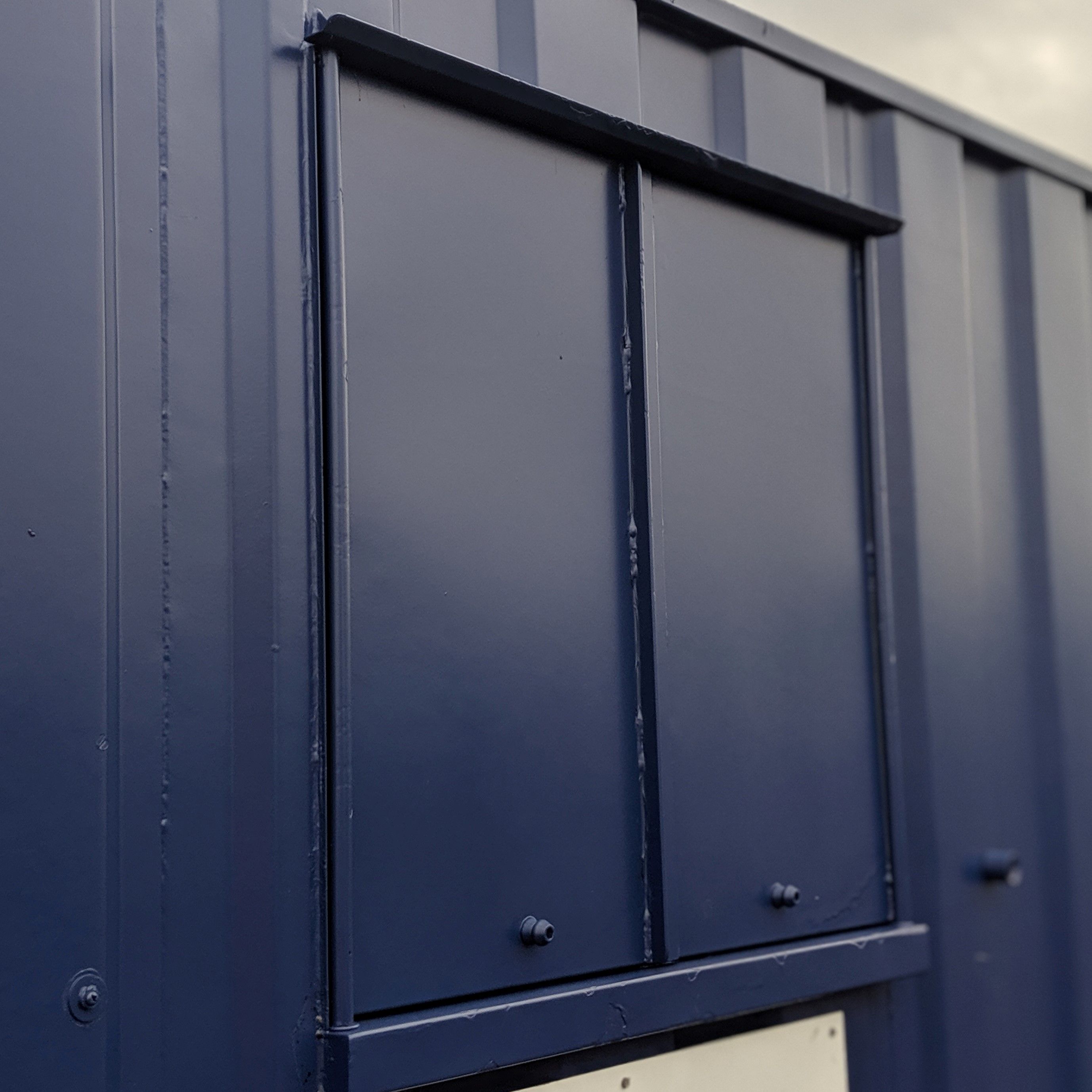

  • Aluminium sliding Window with steel shutter

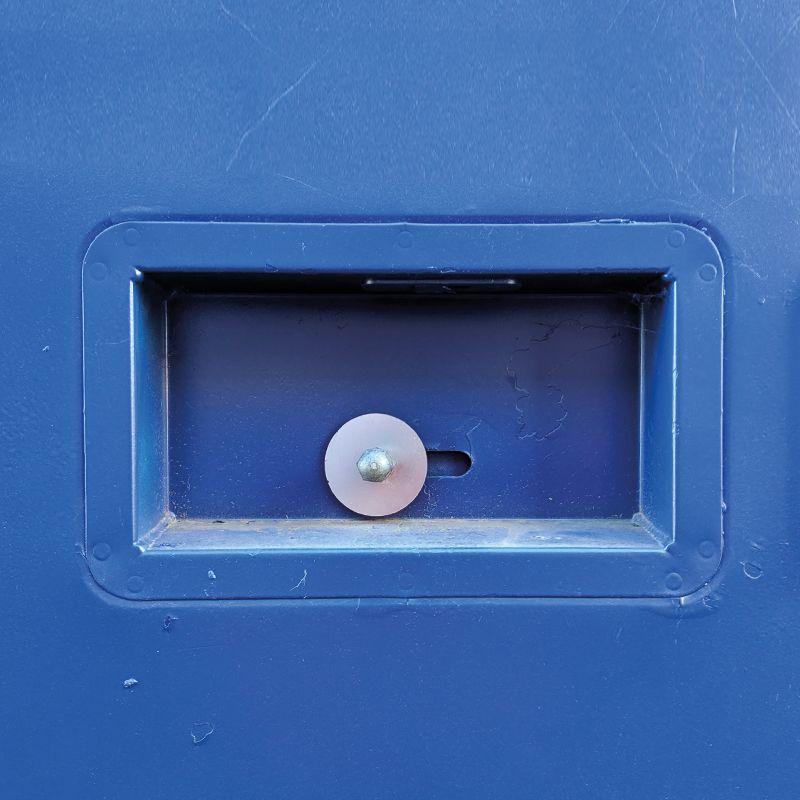

  • Steel personnel doors to three separate areas
  • (Toilet, Warm Room/Generator and Canteen)
  • Fixed low level lifting & fork pockets
